        In telecommunications equipment rooms and base stations, the DC power stored in battery banks cannot directly supply AC equipment such as lighting, servers, and surveillance hosts. Specialized telecommunications inverters serve as core power conversion units, efficiently converting DC power into AC power; when integrated with batteries and switching power supplies, they form a complete uninterruptible power supply system that addresses emergency power needs during mains outages and ensures the continuous, 24/7 operation of communication equipment. They are essential components for emergency power supply in telecommunications systems.

      Core Product Functions

    1. High-efficiency DC-AC conversion: Supports standard telecommunications DC inputs (24V/48V/110V/220V) and provides a stable 110V/220V pure sine wave AC output. The waveform is identical to that of utility power, ensuring perfect compatibility with various AC-powered telecommunications loads and eliminating equipment damage caused by square-wave or modified-sine-wave power supplies.

     2. Seamless power backup during mains failure: Operates in silent standby with intelligent voltage-stabilized charging when mains power is normal; automatically switches to inverter mode the instant mains power is interrupted, ensuring a rapid transition to battery power without any gap in supply, thereby guaranteeing the continuous operation of core communication equipment and preventing network disconnection or data loss.

      3. Electrical isolation for safety protection: Employs an input-output electrical isolation design to completely separate the DC and AC circuits, preventing safety hazards such as grid leakage, voltage backfeed, and short circuits, thereby significantly enhancing the power supply safety of the communication equipment room.

       4. Intelligent Load Adaptation: Capable of handling surge loads such as servers and precision monitoring equipment; supports adaptive operation across light-load to full-load ranges and accommodates communication support equipment with varying power ratings.

        Key Product Features

       1. High-quality pure sine wave output: Utilizing SPWM (Sinusoidal Pulse Width Modulation) technology, the output waveform is smooth with extremely low distortion and no noise interference. It causes no damage to precision communication chips or server equipment, ensures accurate and stable data transmission, and meets the high power supply standards of the telecommunications industry.

       2. Fully digital intelligent control: Equipped with a CPU-based dual closed-loop control system, it features rapid voltage and current response and high voltage regulation accuracy. It adapts to load changes in real time, eliminating voltage drift and frequency deviation, and offers power supply stability far superior to standard consumer-grade inverters.

       3. Multiple safety protection mechanisms: Integrates seven layers of protection—against overload, short circuit, over-temperature, over-voltage, under-voltage, reverse polarity, and surge. It features automatic shutdown for protection under abnormal conditions and automatic reset after the fault is cleared, making it suitable for unmanned base station and equipment room operations.

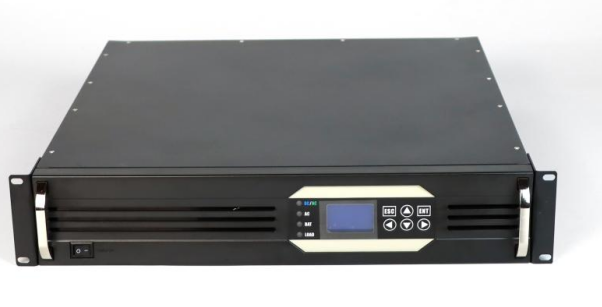

       4. Highly adaptable and easy-to-integrate design: Features a standard 19-inch rack-mount structure suitable for installation in general-purpose communication cabinets. It comes equipped with RS232 and RS485 communication interfaces and offers an optional SNMP interface, enabling integration with server room intelligent monitoring systems for remote start/stop, status inquiries, and fault alarms.

       5. Industrial-grade durability: Features high-power, long-life industrial components and offers excellent electromagnetic compatibility (EMC). It is resistant to interference, vibration, and temperature extremes, ensuring stable, long-term operation in challenging environments such as outdoor base stations and remote communication sites.

       Key application scenarios

       It is primarily used in scenarios such as emergency power supply for communication base stations, uninterruptible power supply for server rooms, electric power communication monitoring systems, and field communication equipment, providing reliable emergency inverter power support for various types of AC-powered communication auxiliary equipment.
